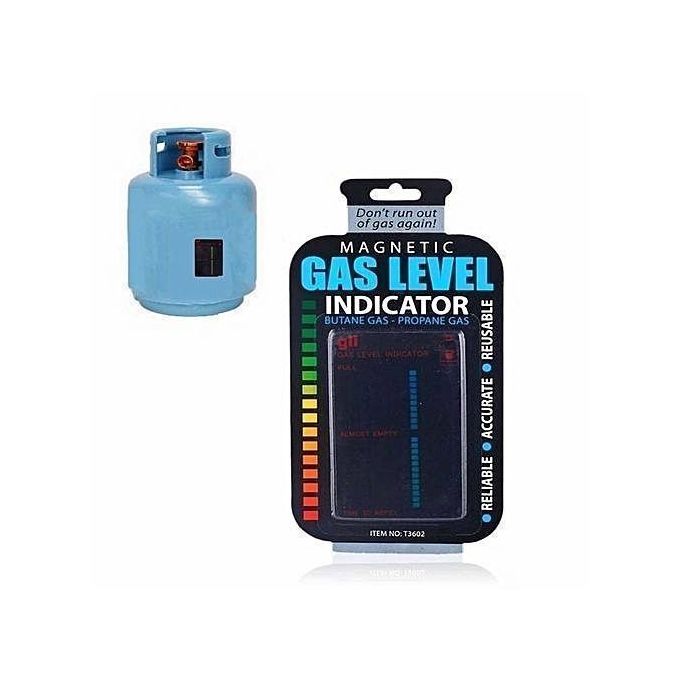

Magnetic Gas level indicator
The gas level indicator must be placed on a clean area on the lower half of the cylinder (magnetically).
Open the gas valve of the bottle and wait 10 minutes before reading your display.
In winter the bar is active on the left side and in the summer the bar is active on the right side.
Temperature range is: -10 degrees to 120 degreesProducts can have different colors, blue, green or brown – when green is displayed, the temperature is normal.
Functionality:
The display of the temperature differences on the GLI only works when the gas bottle is “consumed”, i.e. not just turned on, gas must escape. The colour scale on the display first depends on the outside temperature. Only when the gas bottle is turned on and “used up” can you see what the filling level is after about 5 to 10 minutes. The level indicator must be placed on the lower half of the bottle. Only when the level drops below the level of the upper edge of the GLI, colour differences appear in the column.
Since the lower, liquid area of the bottle becomes cooler than the gaseous state at the top, the gauge reading in the upper area will be different. The colour transition on the scale is then the level.
